Equipment Xchange LLC
14128-001

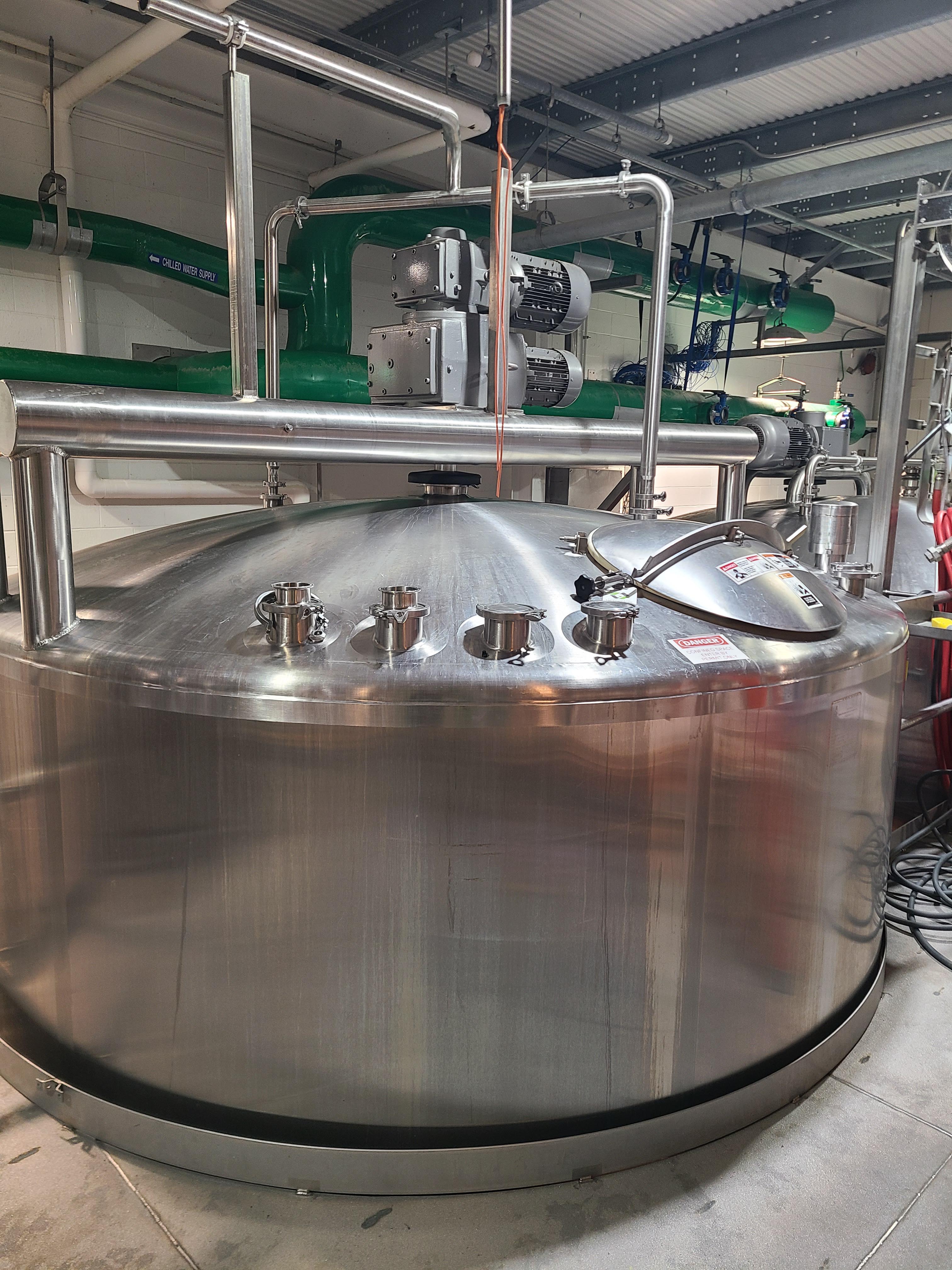

Used 6000 Gallon Walker type 316L stainless steel kettle, Model PZ-CB-SP, Atmospheric Internal. Jacket rated 75 PSI @ 320 Degrees F., -20 @ 75 PSI . Jacketed sides and bottom. Top off center mounted 20 HP, 155 RPM, 3/60/230/460v, single motion with (3) 4 prop agitators blades. (6) 3 1/2 " tri clover top inlets, (1) 4" breather, 20" manway, dished top and bottom, with CIP spray balls. Vessel 11'6 diameter (12' 2" overall dia). X 15'4" high. #4 Polished inside and out. (4) stainless steel legs. Last used for food product. Excellent condition. MFG 2018, Serial numbers WEP-40294-10, National board #7968 and WEP-40294-20, National board #7959 2 Available
14128-002
Used 4000 Gallon Walker type 316L stainless steel kettle, Model PZ-CB-CXR. Dished top and bottom heads. Atmospheric Internal. Jacket rated 75 PSI @ 320 degrees F., -20 @ 75 PSI, Jacketed sides and bottom, Double motion agit sweep 5 HP, 15 RPM, 10 HP 60 RPM (4) 2 prop agitator blades, Both motor 3/60/230/460v, (4) 3 1/2" tri clover top inlets, (1) 4" breather, 20" top manway with CIP spray balls, (4) stainless steel legs. Vessel 9' 5" diameter 10' Overall Dia with inlets for jacket X 16' hgih. #4 Sanitary Polished welds inside and outMFG 2018, Serial numbers WEP-40395-20 National Board #7963 and WEP-40394-10, National Board # 7965. , Last used for food product, Excellent condition. Item 14128-002 2 Available
13962-001
Used approximately 1500 gallon sanitary stainless steel jacketed mix tank. Approximately 7' diameter X 6' 10" straight side. Dished top. Flat sloping bottom. 3 Hp drive with sweep agitator. Baffle. Spray Ball. Jacketed - insulated and sheathed. Internal polished. Agitator has steady bearing. 2" side bottom outlet. Legs. Built by Cherry Burrell. 2 Available
13092-001
Used 1500 gallon stainless steel jacketed Mojonnier kettles. Dome top. Flat sloping bottom. Top mounted drive with 7.5 hp motor and sweep type agitator and baffle. Top manway. Side bottom outlet. On Legs. 2 Available
14030-026
Used approximately 600 gallon Hamilton Hemi bottom kettle. Open top. Center bottom outlet. Jacket rated 50 psi @ 281 degrees F.. Serial D6987. Built 1994. NB 465. Type SA.
12957-001
Used Lee 200 gallon vacuum kettle *unjacketed. 48" diameter vessel by 36" deep. With single motion sweep scraper agitator. Model 200SSA5T Hinged dished top, hydraulic lift off. Internal rated 14.7 psi @ 77 degrees F. MDMT -20 degrees F @ 14.7 psi. 2 Hp Motor with Eurodrive reduce, anchor style agitator with scrapers, 7 on each side. Center bottom outlet. Mounted on mobile stainless steel cart. Built 1998. 2 IN STOCK
13960-005
Used approximately 100 gallon stainless steel hemi bottom jacketed kettle. Vacuum cover with hydraulic tilt off. Approximately 36” diameter X 30” deep. Unit has four legs and is mounted on a mobile cart. Safety ring around kettle. Center bottom outlet. Item 13960-005 Price: $7,500
14039-001
Used 100 gallon stainless steel Hamilton Kettle. Jacketed rated for 100 psi @ 328 degrees F. SN C6152-1. NB 5316. Built 1984. 1Hp 3 phase 60 cycle 230/460 volt 1725 rpm motor with gearbox reducer. Bridge mounted dual motion sweep agitator (requires new teflon wipers). Tilt out agitator system. Tilt discharge with spout.
12441-002
Used 50 gallon stainless steel kettle. Built by Lee Industries. Open Top. Hemi bottom. Rated 40 psi @ 290 degrees F jacket. Double motion agitation. Tilt out agitator. Center bottom outlet with valve. Mounted on stand.
12612-002
Used approximately 40 gallon stainless steel Groen kettle. Model EE-40. Self contained electric/hot water jacket. Approximately 26" diameter x 22" deep. 208 volts. 3 phase. 60 cycle. SN 713 K. NB 25816.
Item 12612-002
10944-012
Used Groen model F20 kettle. Stainless steel construction. Jacket rated 25 psi @ 300 degrees F. Serial number 93148-1. NB 138270. 1991. Stainless steel legs on castors. No bottom outlet.
Item 10944-012
11031-003
Used Groen approximately 4 gallon T304 stainless steel reactor. Approximately 12"" diameter X 9"" deep. Clamped dished top. Welded dished bottom. Internal rated 15 PSI/Full vacuum. Jacket rated 25 PSI @ 300 degrees F. Tilt discharge. 1/2 hp variable speed drive with sweep scraper agitator. Baffle. Temp probe. Mounted on stand with Kinney vacuum pump model KC5. Heat exchanger and Controls. Built 1975. National board stamped.
Item 11031-003
